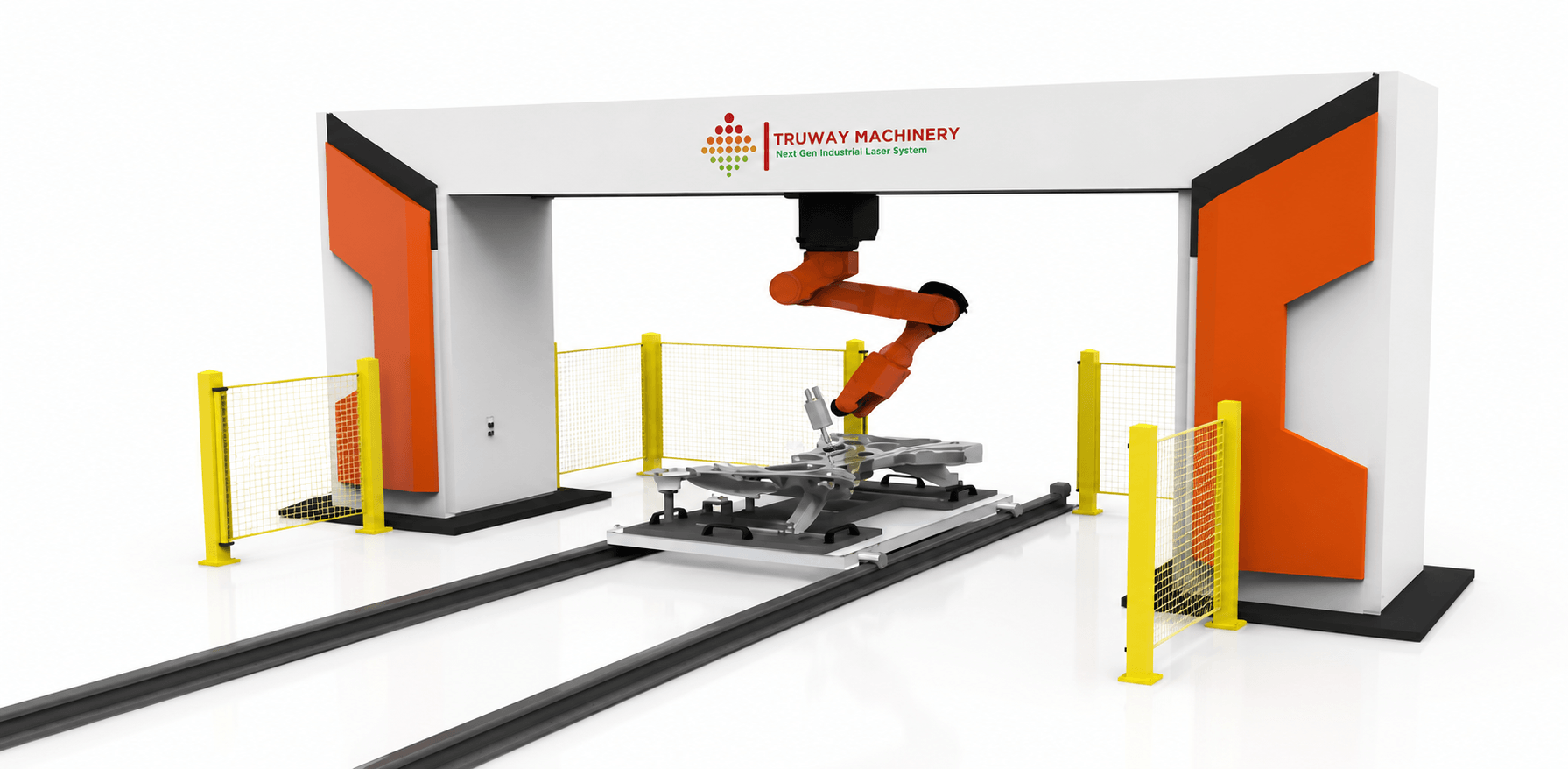

Robotic Arm Fiber Laser Cutting Machine

The Truway 3D Robot Fiber Laser Metal Cutting Machine is engineered to deliver high-speed, high-precision 3D metal cutting for complex components and demanding manufacturing applications. Equipped with an advanced 6-axis robotic arm and an imported original fiber laser, the machine performs 360° multi-angle cutting with exceptional accuracy, stability, and flexibility. Its intelligent control system, stable optical path, and robust gantry structure work together to achieve smooth cutting performance, clean edge quality, and reduced processing time. Designed for precision-driven production, the machine offers reliable operation across a wide range of metal materials while meeting the evolving needs of modern industrial manufacturing.

Advantages

Advanced 6-Axis Robotic Arm enables flexible 360° multi-angle laser cutting.
Imported Original Fiber Laser delivers stable performance with a service life exceeding 100,000 hours.
Stable Light Path & Intelligent Control System ensure consistent cutting accuracy and reliable operation.
High-Speed Cutting with speeds of up to 80 m/min for improved production efficiency.
Produces clean, smooth and high-quality cutting edges with excellent precision.
Gantry Structure provides a larger working area and greater robotic movement flexibility.
Supports complex geometries, multi-angle machining and non-standard workpieces with ease.
High positioning accuracy and intelligent motion control help reduce production cycle time.
Equipped with German reducer, gear & rack, Japanese guide rails and ball screw for smooth and stable machine performance.
Suitable for cutting 0.5–3 mm carbon steel sheets, along with stainless steel, aluminium alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy and aluminium-zinc plate.
Operates on 380 V, 50 Hz, Three Phase power supply.
500 W Fiber Laser Power.
1 Year Warranty.
Machines available in 1.5kw, 3kw, 6kw & 12kw. From bed size ranging froom 1500mm*3000mm to 3000mm*8000mm

Cutting Depth

Laser Machine in kw	MS	SS	Aluminium
1.5 kw	10-12 mm	5-6mm	4-5mm
3 kw	14-16 mm	10-12mm	6-8mm
6 kw	20-25 mm	15-20mm	10-12mm
8 kw	25 -28 mm	18-23 mm	16-20 mm
12 kw	30-40 mm	25-30 mm	20-30 mm
20 kw	50-60 mm	35-40 mm	30-35 mm
40 kw	70-80 mm	60-80 mm	60-80 mm

Cutting Samples

Frequently Asked Questions?

Find out most common questions asked by the Customers

01. Which company source is used in the Machine

Source used in the machine are Max, Raycus, IPG & JPT.

02. Which company head is used in the Machine?

Head used are Raytool, Boci.

03. Do we provide UPS & Compressor?

Yes we provide UPS and Compressor but comes up with extra cost

04. What is Delivery time of Cutting Machine?

Delivery time is 46-60 days from the date of order placed

05. What is Machine and Source Warranty?

Warranty of Machine is 1 year and Warranty on Source is 2 years

06. Is installation and training done by Truway Machinery

Yes we do installation and Machine training
