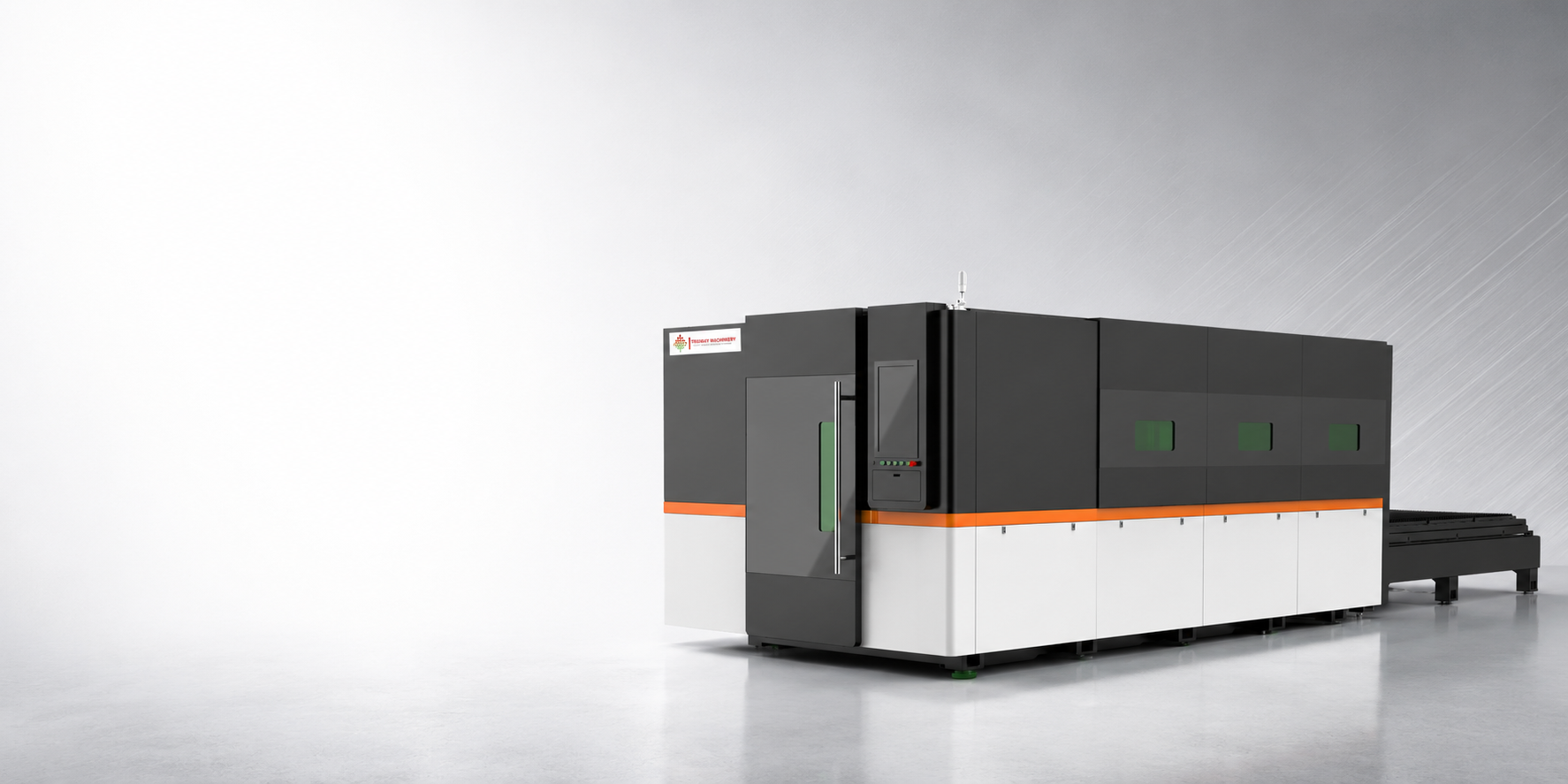

Fully Enclosed Fiber Laser Cutting Machine

The Truway 1530G Fiber Laser Cutting Machine is designed for high-speed, high-precision metal cutting with stable performance and reliable operation. Built with a fully enclosed protective design, a heavy-duty carbon steel welded structure, an integral cast aluminium beam, and an automatic focus system, it delivers excellent cutting quality, high efficiency, and long-term durability. Equipped with an original fiber laser source, the machine offers a service life of over 100,000 hours and is suitable for cutting stainless steel, carbon steel, silicon steel, aluminium alloy, titanium alloy, galvanized steel, copper, brass, and other metal materials.

Advantages

Fully Enclosed Protective Cover for operator safety and a dust-proof environment.
Carbon Steel Welded Structure with high-temperature annealing for superior stability.
Five-Axis Machined Frame for high strength and excellent rigidity.
Integral Cast Aluminium Beam for lightweight, corrosion-resistant performance.
Automatic Focus System for hassle-free and precise cutting.
Stable Light Path & Control System for reliable operation.
Original Fiber Laser Source with over 100,000 hours of service life.
High-Speed Cutting up to 80 m/min with smooth cutting edges.
Premium German & Japanese Components for accurate and dependable performance.
High Precision with ±0.03 mm positioning accuracy.
Repeat Accuracy of ±0.025 mm for consistent cutting results.
Cuts Multiple Metals including stainless steel, carbon steel, aluminium, brass, copper, galvanized steel, titanium alloy, and silicon steel.
Machines available in 1.5kw, 3kw, 6kw & 12kw. From bed size ranging froom 1500mm*3000mm to 3000mm*8000mm

Cutting Depth

Laser Machine in kw	MS	SS	Aluminium
1.5 kw	10-12 mm	5-6mm	4-5mm
3 kw	14-16 mm	10-12mm	6-8mm
6 kw	20-25 mm	15-20mm	10-12mm
8 kw	25 -28 mm	18-23 mm	16-20 mm
12 kw	30-40 mm	25-30 mm	20-30 mm
20 kw	50-60 mm	35-40 mm	30-35 mm
40 kw	70-80 mm	60-80 mm	60-80 mm

Cutting Samples

Frequently Asked Questions?

Find out most common questions asked by the Customers

01. Which company source is used in the Machine

Source used in the machine are Max, Raycus, IPG & JPT.

02. Which company head is used in the Machine?

Head used are Ray tool, Boci.

03. Do we provide UPS & Compressor?

Yes we provide UPS and Compressor but comes up with extra cost

04. What is Delivery time of Cutting Machine?

Delivery time is 46-60 days from the date of order placed

05. What is Machine and Source Warranty?

Warranty of Machine is 1 year and Warranty on Source is 2 years

06. Is installation and training done by Truway Machinery

Yes we do installation and Machine training
